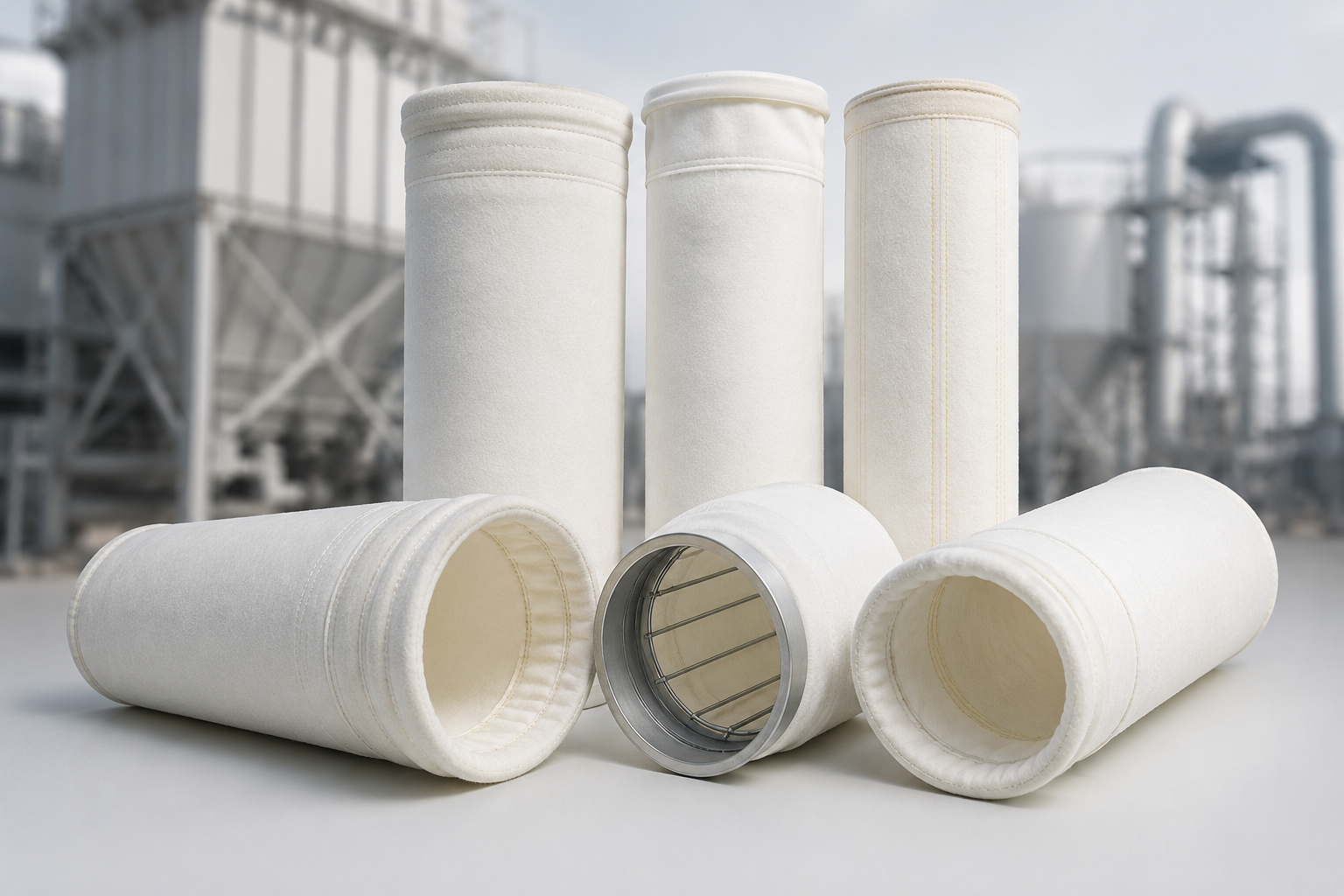

Bag Filter
Bag Filters are essential filtration components used in industrial dust collection systems.
They are designed to capture dust, fine particles, and airborne contaminants before clean air is discharged, helping to improve air quality, protect equipment, and maintain a safe working environment.
We offer a wide range of filter bag materials to suit various operating temperatures, chemical environments, and industrial applications. Our bag filters can also be manufactured according to customer specifications, ensuring compatibility with different dust collector systems.
We offer a wide range of filter bag materials to suit various operating temperatures, chemical environments, and industrial applications. Our bag filters can also be manufactured according to customer specifications, ensuring compatibility with different dust collector systems.
| Filter Media | temperature | Key features |
| Polypropylene (PP) | 95°C | Excellent resistance to acids and alkalis. Cost-effective for general applications. |
| PE (Polyester) | 150°C | Ideal for general industrial applications with excellent durability. |
| PPS (Polyphenylene Sulphide) | 190°C | Excellent resistance to high temperatures and corrosive chemicals. |
| Nomex® (m-Aramid) | 200°C | Designed for continuous high-temperature applications with excellent thermal stability. |
| PI (Polyimide) | 240°C | Suitable for demanding high-temperature filtration applications. |
| PTFE (Polytetrafluoroethylene) | 250°C | Superior chemical resistance and excellent performance in harsh environments. |
| Fiberglass Fabric (GL) | 260°C | Ideal for extremely high-temperature filtration applications. |
Ordering Information
To ensure the correct specification, please provide the following information:
- Filter bag diameter
- Filter bag length
- Filter media/material
- Top and bottom construction
- Operating temperature
- Type of dust or particles
- Dust collector model or manufacturer
Providing a sample of the existing filter bag is highly recommended to ensure accurate sizing and compatibility.
Order instructions : Measure the length The width of the mouth of the filter bag is clear. If possible, remove the sample for us to compare the size. so as not to make mistakes later
